YShield DRY54 RF 5G Shielding Paint (3 Litres) - Needs mixing with water
Free Shipping
Made in Germany
Shielding paint especially made for shielding high-frequency radiation (HF) or radio frequency (RF), this includes 3G, 4G, and 5G as well as low-frequency electric fields (LF).
Breathable, plastisizer-free, low-emission and without a preservation agent.
Between one and three layers are required depending on your required shielding needs , 2 coats minimum is the recommended.
This paint is in powder form and requires mixing with water.
A 1 litre mixture can cover 6 to 8 square meters depending on the surface it is being applied to.
I offer free phone support for this product, as it is very important to do this correctly!
Free Shipping
Made in Germany
Shielding paint especially made for shielding high-frequency radiation (HF) or radio frequency (RF), this includes 3G, 4G, and 5G as well as low-frequency electric fields (LF).
Breathable, plastisizer-free, low-emission and without a preservation agent.
Between one and three layers are required depending on your required shielding needs , 2 coats minimum is the recommended.
This paint is in powder form and requires mixing with water.
A 1 litre mixture can cover 6 to 8 square meters depending on the surface it is being applied to.
I offer free phone support for this product, as it is very important to do this correctly!
Free Shipping
Made in Germany
Shielding paint especially made for shielding high-frequency radiation (HF) or radio frequency (RF), this includes 3G, 4G, and 5G as well as low-frequency electric fields (LF).
Breathable, plastisizer-free, low-emission and without a preservation agent.
Between one and three layers are required depending on your required shielding needs , 2 coats minimum is the recommended.
This paint is in powder form and requires mixing with water.
A 1 litre mixture can cover 6 to 8 square meters depending on the surface it is being applied to.
I offer free phone support for this product, as it is very important to do this correctly!

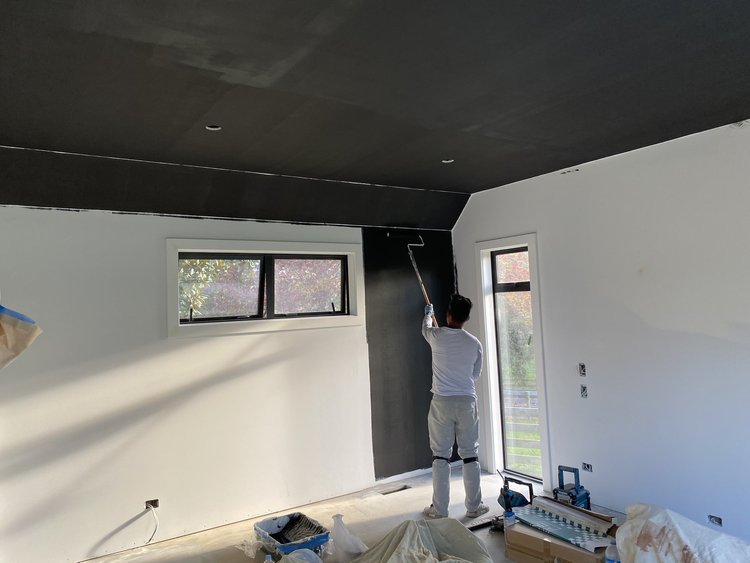

This paint is black in colour. We recommend a minimum of 2 coats and then an undercoat can be applied over the top and then the final topcoat colours applied.
Special characteristics DRY54:
This paint can be used to shield against cellphone towers, Wi-Fi, electric fields, and many other EMF sources.
This powder shielding paint stays nearly as liquid as water while mixing – the dust formation is extremely limited, as the powder blends immediately with the water. The paint becomes thicker after 15 minutes resting time – it can be painted with afterwards and you will get a nice flow for an even shielding.
The phenomenal price-performance-ratio is achieved, as the DRY54 only costs half as much as our liquid paints. That is why you can paint two times for the same costs.
The powder gets bagged and then vacuum-packed three times. Vacuum-packed into one another, using three bags – that is why no moisture will get into the powder, even years later.
The powder needs to be mixed with water - what you will need to do so: Digital scales, protective mask, safety glasses, a large bucket for mixing, a drilling machine with a stirring attachment and 15-30 minutes of your time.
Shielding attenuation
This product shields high frequency electromagnetic fields (HF) or Radio frequency (RF), as well as shielding low-frequency alternating electric fields (LF) when earthed.
Unless otherwise stated, the indicated dB-values apply to 1 GHz. Measurement from 600 MHz to 40 GHz according to standards ASTM D4935-10 or IEEE Std 299-2006.
At a yield of 4 sqm/l:
At 1 GHz: Single layer 36 dB | Double layer 41 dB | Three layer 46 dB
At a yield of 8 sqm/l:
At 1 GHz: Single layer 30 dB | Double layer 36 dB | Three layer 40 dB
Grounding
Must be grounded! We recommend using the earthing adaptor GF2 on this website as well as the conductive tape to ensure an adequate earth.
The earthing is very important and should be done in between coats and should be carried out by a registered electrician (I may be able to do this for you as I am a registered electrician).
Ingredients
Untreated natural graphite, carbon black, pure acrylics powder, additives, no preservative agent.
No nanotechnology
This shielding paint is developed in accordance with strict ecological criteria. For example, the carbon black is the lowest emission possible on the market and untreated natural graphite. There is no graphene, a nanomaterial where the hazard potential is still completely unknown.
Ready for 5G
Find two grey bars in all shielding diagrams with the 5G frequency spectrums FR1 (600 MHz – 6GHz) and FR2 (24 GHz – 40 GHz).
Downloads
PDF: Laboratory report attenuation
PDF: Expert report attenuation 4 sqm/l
