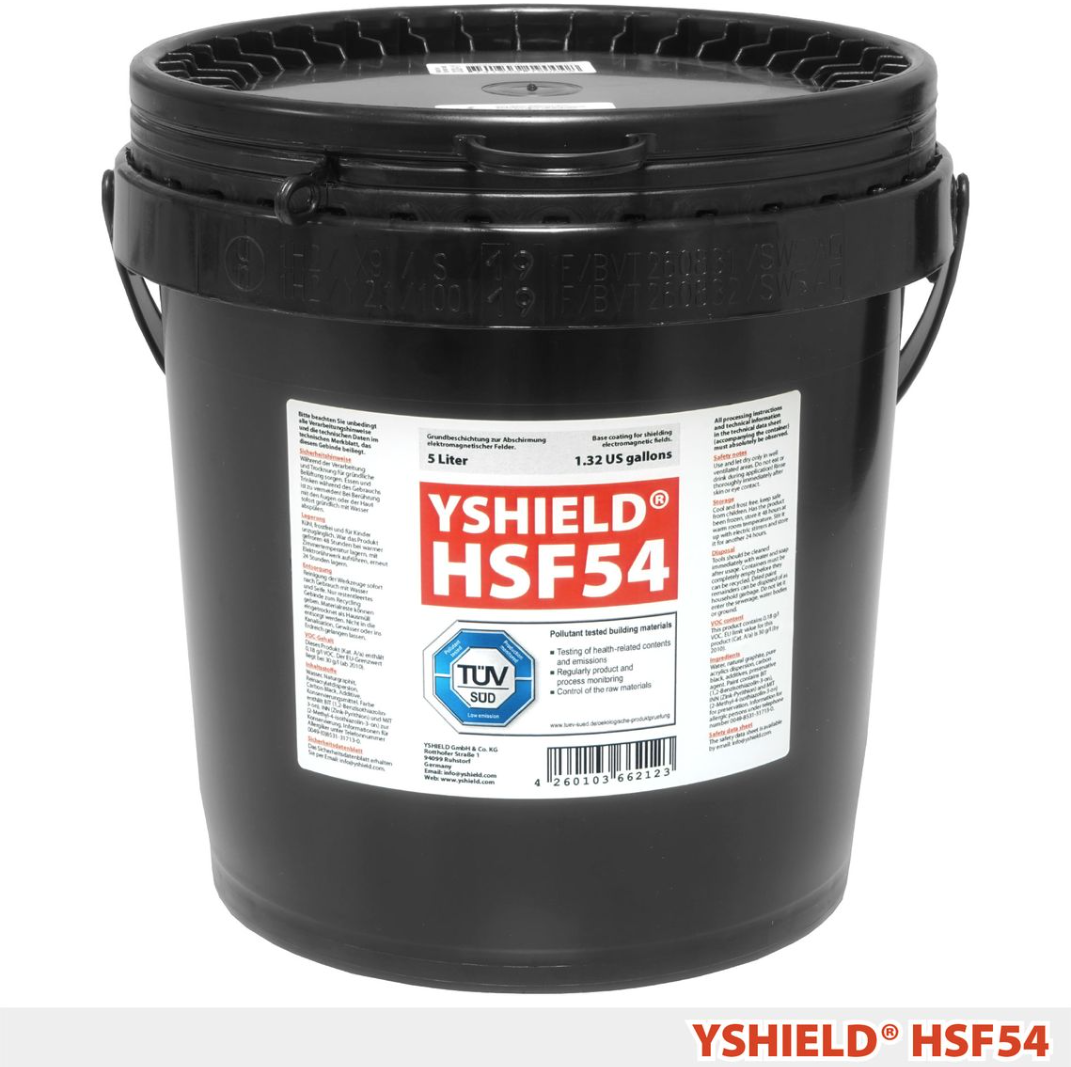

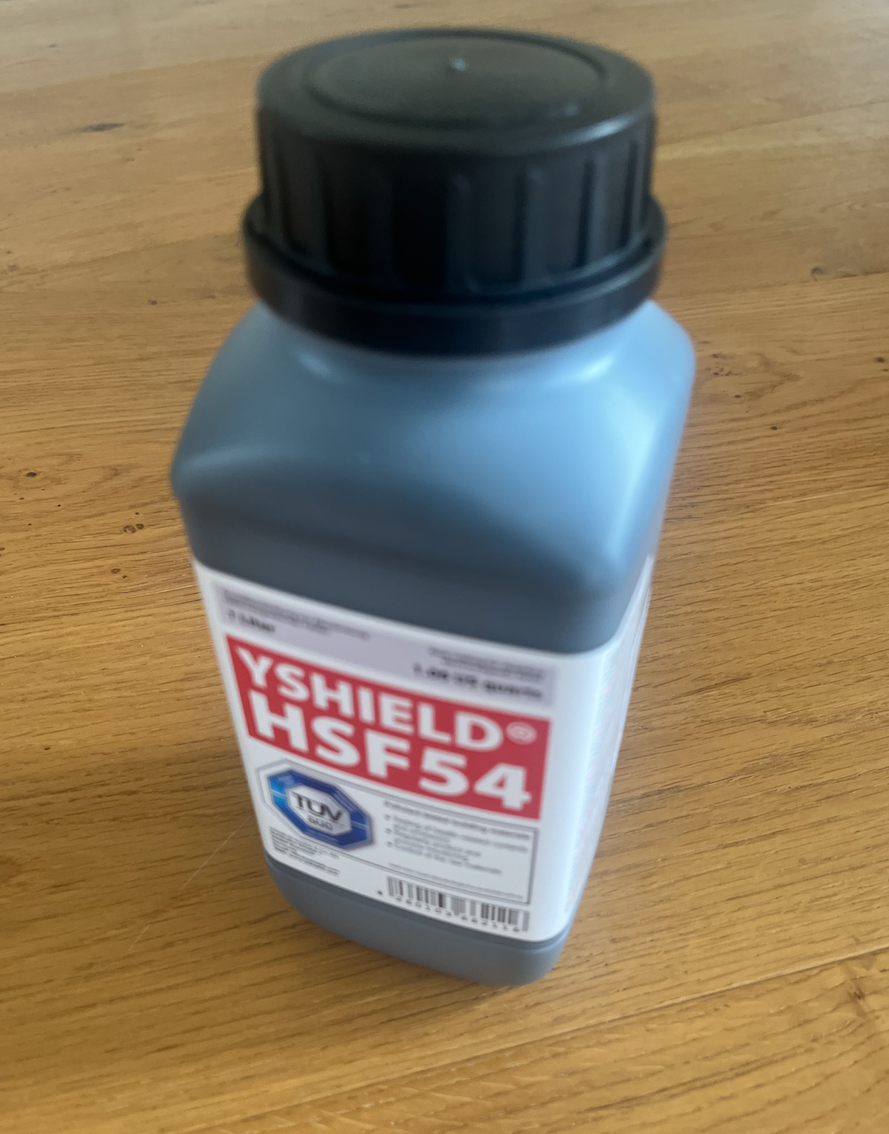

YShield HSF54 Standard Paint (1/ 5 Litres) - No mixing with water required
This paint is black in colour. We recommend a minimum of 2 coats and then an undercoat can be applied over the top and then the final topcoat colours applied.
Screening attenuation
At a yield of 4 sqm/l:
At 1 GHz: Single layer 44 dB | Double layer 53 dB | Three layer 60 dB

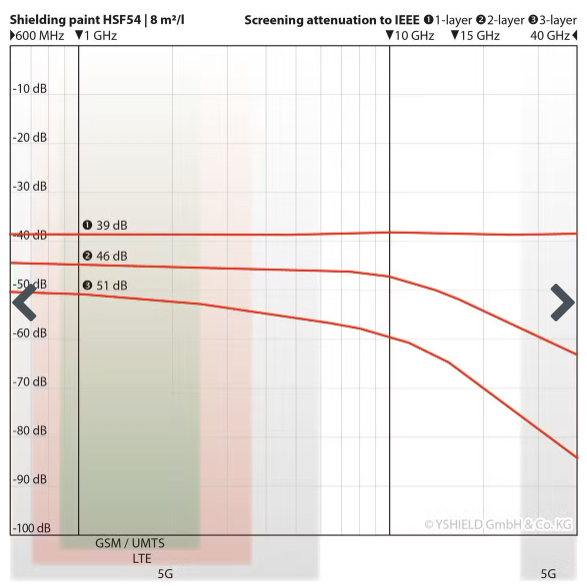

At a yield of 8 sqm/l:
At 1 GHz: Single layer 39 dB | Double layer 46 dB | Three layer 51 dB
Excellent adhesion on almost all substrates interior and exterior.
Top coating
Preferably covered with plastic bonded water-based emulsion paints, dispersion silicate paints, facade paints or silicon resin paints.
Optional: Fiber additive AF3
For crack bridging and a better grounding we advise our fiber additive AF3 with long conductive carbon fibers.
Frost resistance
This product is frost resistant (proved for 5 frost-/thaw cycles) and can be shipped throughout the year by air cargo or ship.
Ingredients
Water, natural graphite, pure acrylics dispersion, carbon black, additives, preservative (BIT, INN, MIT).
Technical data
Please find detailled data in the table overview and the technical data sheet.
No nanotechnology
Our shielding paints are developed in accordance with strict ecological criteria. We use, for example, the carbon black with the lowest emission possible on the market and untreated natural graphite. We consciously do not use graphene, a nanomaterial where the hazard potential is still completely unknown.
TÜV-SÜD certification
We have our shielding paints monitored by TÜV-SÜD. The whole production process including quality control, emission behaviour and economical use of preserving agents is subject to monitoring.
Grounding
Must be grounded! We recommend using the earthing adaptor GF2 on this website as well as the conductive tape to ensure an adequate earth.
The earthing is very important and should be done in between coats and should be carried out by a registered electrician (I may be able to do this for you as I am a registered electrician).
Shielding attenuation HF & LF
This product shields high frequency electromagnetic fields (HF). Unless otherwise stated, the indicated dB-values apply to 1 GHz. Measurement from 600 MHz to 40 GHz according to standards ASTM D4935-10 or IEEE Std 299-2006.
This product with an electrically conductive surface shields low-frequency alternating electric fields (LF) when earthed.
Ready for 5G
Some companies offer "special" 5G-products. This products shields all 5G-frequencies, even without advertising this! Find two gray bars in all shielding diagrams with the 5G frequency spectrums FR1 (600 MHz – 6GHz) and FR2 (24 GHz – 40 GHz).
